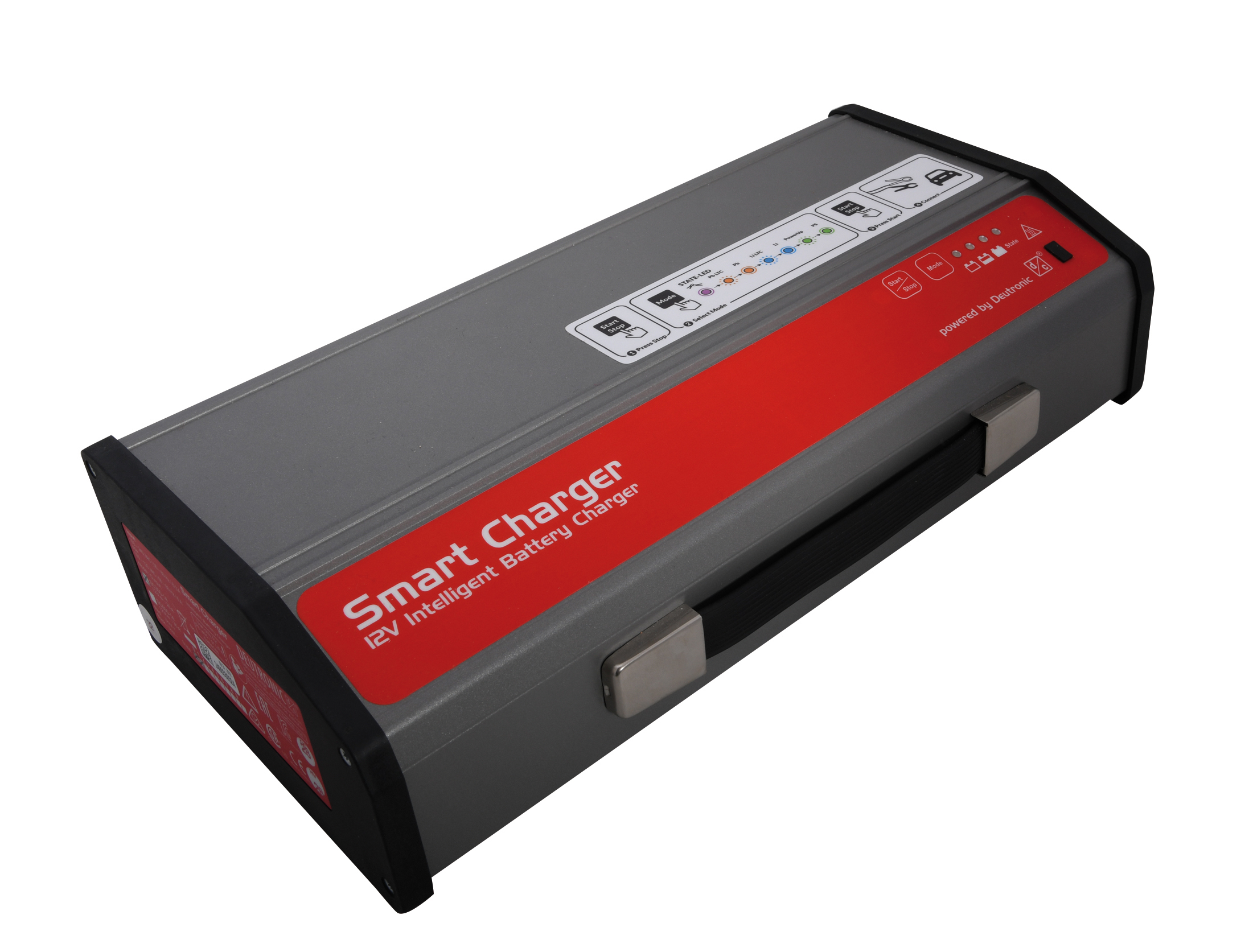

SC300/500/750 Smart Charger
Intelligent charger for lead acid /AGM / VRLA / LiFePO4 batteries
l 100% qualified for motor vehicles on-board electronic system / airbag
l Extensive protection functions and self-protection functions
l Short circuit and reverse polarity protection
l Protective functions against defect batteries
l Reliable sparking suppression
l Maximum safety thanks to standardized breakaway coupling
l Smart charging technology with dynamic adaptation to battery and consumption situation
l High reliability and performance due to permanent 20A(SC300)/35A(SC500)/50A(SC750) power supply
l Wide range of applications for lead-acid and lithium batteries thanks to different modes for external power supply / charging / long-term charging especially for showroom requirements / cable compensation
l Improved handling due to PowerUp mode to get deeply discharged LiFePO4 batteries to switch on
l High user friendliness due to display of battery charge status as well as active process via RGB LEDs
l Customized setting possible through individual parameterization
l Mini USB for an optional firmware update
l Electrical safety: EN60335, UL1236, CSA C22.2 No.107.2-01
Option: Country-specific version (e.g. mains cable)
Option: Customized charging parameters
Option: Switchable option to adjustable power supply
On request: Low temperature operation until -40℃
On request: Water proof version acc. to IP65
On request: TS35 or screw mounting
● Typelist:
| Type | Input voltage | Output voltage | Output current | Cat. no. |
|---|---|---|---|---|
| charge/trickle（typical） | ||||
| SC300-14 | 100-240VAC | 14.4/13.8VDC | 20A | 107143/22/000 |
| SC500-14 | 100-240VAC | 14.4/13.8VDC | 35A | 107142/22/000 |
| SC750-14 | 100-240VAC | 14.4/14.0VDC | 50A | -- |
*refer to description: current limiting
