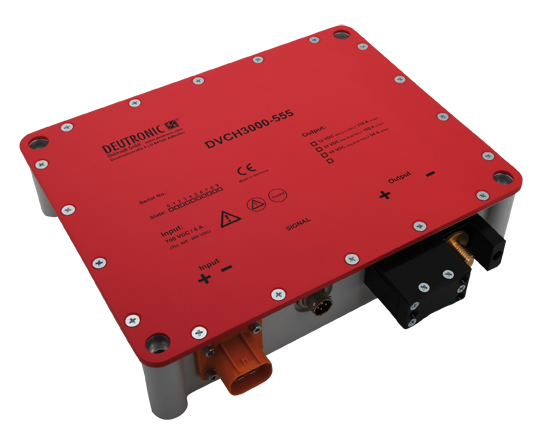

DVCH3003-400
For hybrid and electric vehicles, electronic components such as high-voltage energy storage, electric motors etc. have an important role. Depending on the degree of electrification of the vehicle, components of conventional drive concepts are replaced by more efficient ones. Thus, the generator of hybrid or electric vehicles, which supplies the 12V/24V/48V electrical on-board system, can be saved. Instead of this, a DC/DC converter is required, which changes the voltage of the high-voltage energy storage device to the voltage of the electrical system.
■ Power range 3000W
■ Available CAN protocols: Standard-CAN and J1939
■ Protection classes IP65, IP67 and IP6K9K
■ Contact cooled, no extensive cooling concept in the vehicle required
■ Customized changes possible through modular design
■ HV connection cable or supplementary heat sinks available as accessories
● Typelist:
| Type | Input voltage | Output voltage | Output current | Cat. no. |
|---|---|---|---|---|
| DVCH3003-400-12 | 200-470VDC | 2-15VDC | 224A | 105197 |
| DVCH3003-400-24 | 200-470VDC | 2-30VDC | 112A | 105196 |
| DVCH3003-400-48 | 200-470VDC | 4-60VDC | 56A | 105184 |
