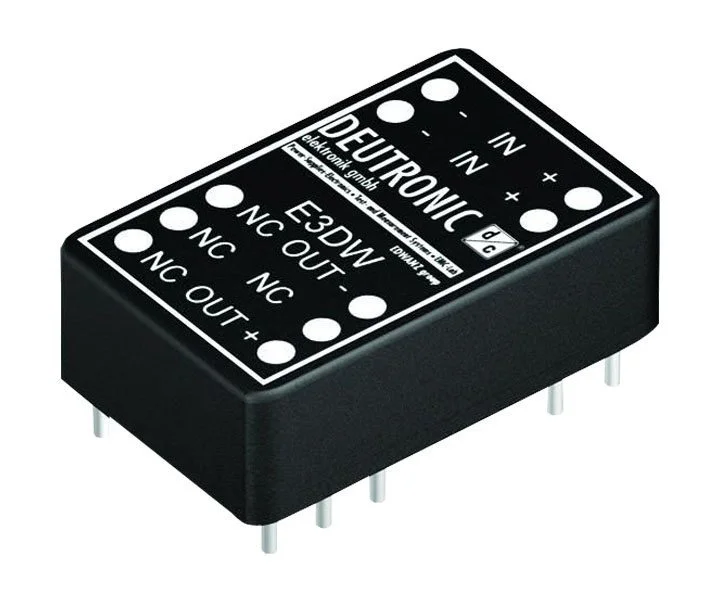

E3DW
效率高达 80%
24 引脚 DIL
隔离 500VDC min.
短路保护
选项 H：3kV
PI 输入滤波器
宽范围输入 2:1
● 产品型号:
| 型号 | 输入电压 | 输出电压 | 输出电流 | 产品编码 |
|---|---|---|---|---|
| E3DW5R3,3 | 4.5-6VDC | 3,3VDC | 600mA | 111879 |
| E3DW5R5 | 4.5-6VDC | 5VDC | 600mA | 111850 |
| E3DW5R12 | 4.5-6VDC | 12VDC | 250mA | 111851 |
| E3DW5R15 | 4.5-6VDC | 15VDC | 200mA | 111852 |
| E3DW5R5-5 | 4.5-6VDC | 5VDC / -5VDC | 300mA / -300mA | 111853 |
| E3DW5R12-12 | 4.5-6VDC | 12VDC / -12VDC | 125mA / -125mA | 111854 |
| E3DW5R15-15 | 9-18VDC | 15VDC / -15VDC | 100mA / -100mA | 111855 |
| E3DW12R3,3 | 9-18VDC | 3,3VDC | 600mA | 110878 |
| E3DW12R5 | 9-18VDC | 5VDC | 600mA | 110856 |
| E3DW12R12 | 9-18VDC | 12VDC | 250mA | 110857 |
| E3DW12R15 | 9-18VDC | 15VDC | 200mA | 110858 |
| E3DW12R5-5 | 9-18VDC | 5VDC / -5VDC | 300mA / -300mA | 110859 |
| E3DW12R12-12 | 9-18VDC | 12VDC / -12VDC | 125mA / -125mA | 111860 |
| E3DW12R15-15 | 9-18VDC | 15VDC / -15VDC | 100mA / -100mA | 111861 |
| E3DW24R3,3 | 18-36VDC | 3,3VDC | 600mA | 110877 |
| E3DW24R5 | 18-36VDC | 5VDC | 600mA | 110862 |
| E3DW24R12 | 18-36VDC | 12VDC | 250mA | 110863 |
| E3DW24R15 | 18-36VDC | 15VDC | 200mA | 110864 |
| E3DW24R5-5 | 18-36VDC | 5VDC / -5VDC | 300mA / -300mA | 110865 |
| E3DW24R12-12 | 18-36VDC | 12VDC / -12VDC | 125mA / -125mA | 110866 |
| E3DW24R15-15 | 18-36VDC | 15VDC / -15VDC | 100mA / -100mA | 110867 |
| E3DW48R3,3 | 36-72VDC | 3,3VDC | 600mA | 110876 |
| E3DW48R5 | 36-72VDC | 5VDC | 600mA | 110868 |
| E3DW48R12 | 36-72VDC | 12VDC | 250mA | 110869 |
| E3DW48R15 | 36-72VDC | 15VDC | 200mA | 110870 |
| E3DW48R5-5 | 36-72VDC | 5VDC / -5VDC | 300mA / -300mA | 110871 |
| E3DW48R12-12 | 36-72VDC | 12VDC / -12VDC | 125mA / -125mA | 110872 |
| E3DW48R15-15 | 36-72VDC | 15VDC / -15VDC | 100mA / -100mA | 110873 |
