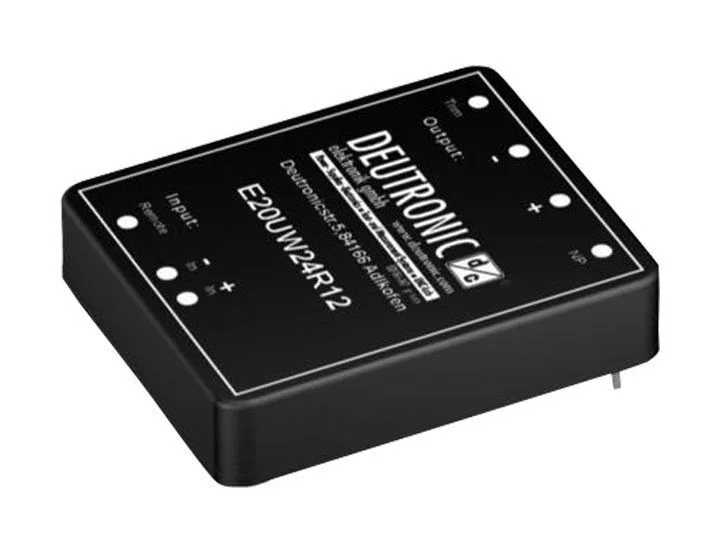

E20UW
可受控制
噪音保护EN55011 A 级
连续短路保护
输入/输出隔离至少1500VDC
输出 ± 10% 可调
双版本： 最小负载 10%
宽范围输入 4:1
● 产品型号:
型号 | 输入电压 | 输出电压 | 输出电流 | 产品编码 |
E20UW24R3,3 | 9-36VDC | 3,3VDC | 4A | 115251 |
E20UW24R5 | 9-36VDC | 5VDC | 4A | 115252 |
E20UW24R12 | 9-36VDC | 12VDC | 1,67A | 115253 |
E20UW24R15 | 9-36VDC | 15VDC | 1,33A | 115254 |
E20UW24R5-5 | 9-36VDC | 5VDC / -5VDC | 2A / -2A | 115261 |
E20UW24R12-12 | 9-36VDC | 12VDC / -12VDC | 0,833A / -0,833A | 115259 |
E20UW24R15-15 | 9-36VDC | 15VDC / -15VDC | 0,666A / -0,666A | 115260 |
E20UW48R3,3 | 18-72VDC | 3,3VDC | 4A | 115255 |
E20UW48R5 | 18-72VDC | 5VDC | 4A | 115256 |
E20UW48R12 | 18-72VDC | 12VDC | 1,67A | 115257 |
E20UW48R15 | 18-72VDC | 15VDC | 1,33A | 115258 |
E20UW48R5-5 | 18-72VDC | 5VDC / -5VDC | 2A / -2A | 115264 |
E20UW48R12-12 | 18-72VDC | 12VDC / -12VDC | 0,833A / -0,833A | 115262 |
E20UW48R15-15 | 18-72VDC | 15VDC / -15VDC | 0,666A / -0,666A | 115263 |
