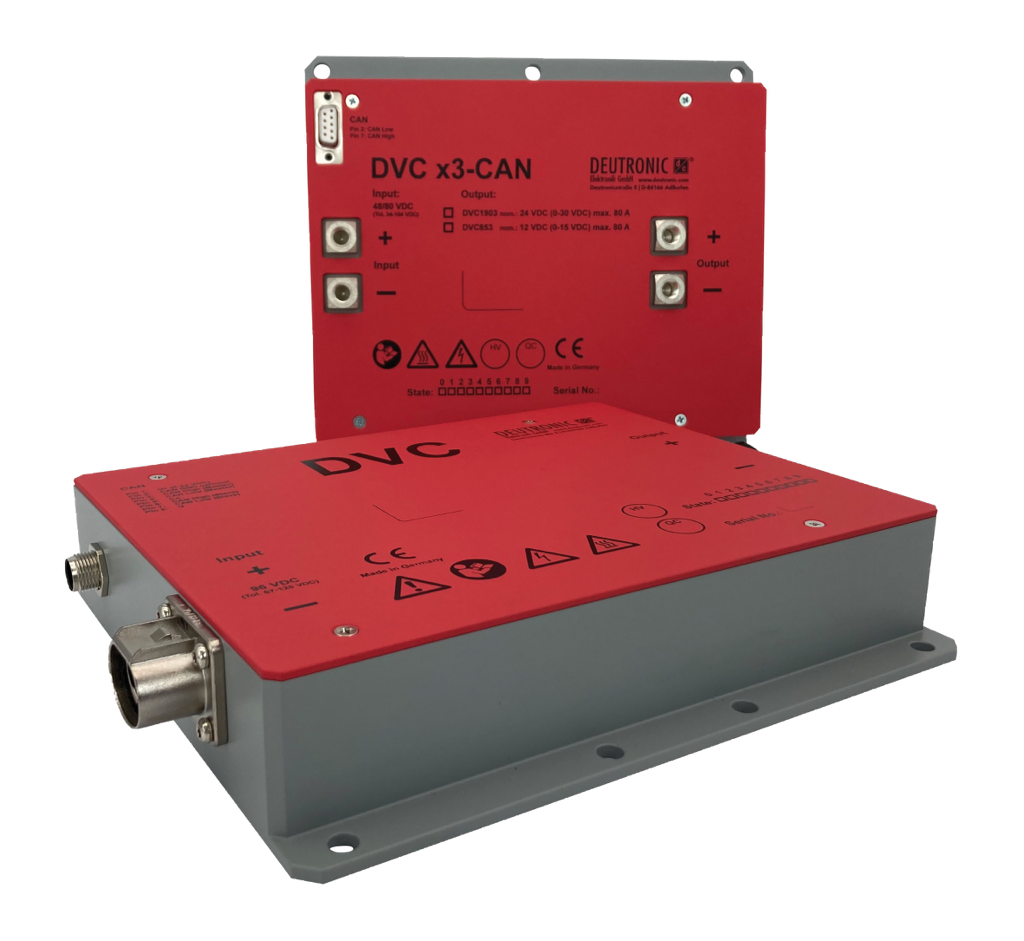

DVC953
Due to the fact that planar devices are used, it is possible to achieve a high power density combined with a very flat design.
n Wide range input
n Galvanical isolated switching regulator
n Power range up to 1280W
n High efficiency – up to – typ. 93%
n Short-circuit, no load and over temperature protection
n IP-protection class IP67
n Parallel connectable
n Particularly flat and compact design
n CAN J1939 (controllable output voltage and current)
● Typelist:
| Type | Input voltage | Output voltage | Output current | Cat. no. |
|---|---|---|---|---|
| DVC953-48/80-13,8-CAN-phased out | 48-80VDC | 13,8VDC | 80A | 105185 |
| DVC953-48/80-13,8-CAN-v2 | 48-80VDC | 13,8VDC | 80A | 105167 |
DVCx3-Series-DCDC-converter.pdf
