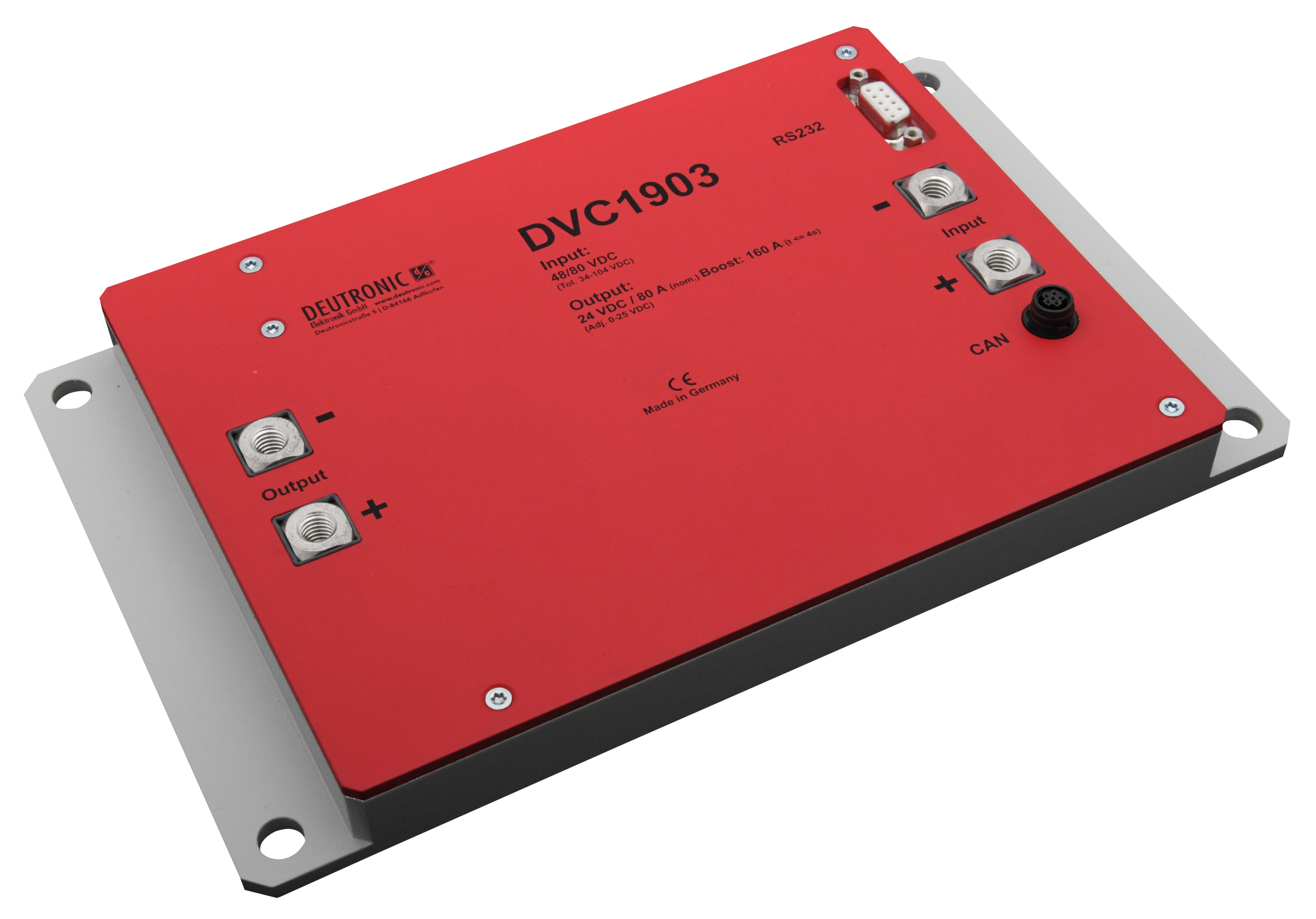

DVC1903
Due to the fact that planar devices are used, it is possible to achieve a high power density combined with a very flat design. The DVC1903 has a boost performance and provide for t minor = 4s a maximum output power of 3840W. Other input/output voltage ranges are available on request.
Wide range input
Galvanical isolated switching regulator
Power range up to 1680W
Short-term peak power of up to 3840W
High efficiency – typ. 95%
Short-circuit, no load and over temperature protection
IP-protection class IP54
Parallel connectable
Particularly flat and compact design
On request: Changed output voltage and current
On request: Changed input voltage range
* Order option (see spreadsheet):
…/x/…: Accessory variant
…/0/… without accessory
…/20/… with heatsink
More on request
…/yyy: Setting (Standard setting or customized)
…/000 DC-Standard CAN 2.0A
…/001 DC-Standard CAN J1939
Customer-specific parameterization on request
● Typelist:
| Type | Input voltage | Output voltage | Output current | Cat. no. |
|---|---|---|---|---|
| DVC1903-48/80-24-v2 | 48-80VDC | 24,3VDC | 70A(Boost 160A t<= 4s) | 105216 |
| DVC1903-48/80-24-CAN-v2 | 48-80VDC | 2-30VDC | 80A | 105217 |
