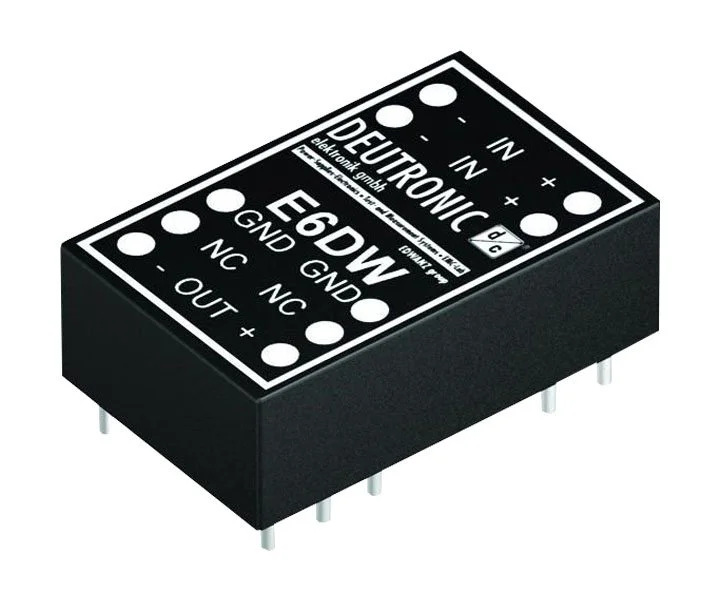

E6DW
24 针引脚 DIL
输入/输出隔离最低 500VDC.
短路保护
双版本： 最小负载约为 10%
宽范围输入 2:1
PI 输入滤波器
效率高达 82%
● 产品型号:
型号 | 输入电压 | 输出电压 | 输出电流 | 产品编码 |
E6DW12R3,3 | 9-18VDC | 3,3VDC | 1000mA | 110949 |
E6DW12R5 | 9-18VDC | 5VDC | 1000mA | 110950 |
E6DW12R12 | 9-18VDC | 12VDC | 470mA | 110951 |
E6DW12R15 | 9-18VDC | 15VDC | 400mA | 110952 |
E6DW12R12-12 | 9-18VDC | 12VDC / -12VDC | 230mA / -230mA | 110953 |
E6DW12R15-15 | 9-18VDC | 15VDC / -15VDC | 190mA / -190mA | 110954 |
E6DW24R3,3 | 18-36VDC | 3,3VDC | 1000mA | 110948 |
E6DW24R5 | 18-36VDC | 5VDC | 1000mA | 110955 |
E6DW24R12 | 18-36VDC | 12VDC | 470mA | 110956 |
E6DW24R15 | 18-36VDC | 15VDC | 400mA | 110957 |
E6DW24R12-12 | 18-36VDC | 12VDC / -12VDC | 230mA / -230mA | 110958 |
E6DW24R15-15 | 18-36VDC | 15VDC / -15VDC | 190mA / -190mA | 110959 |
E6DW48R3,3 | 36-72VDC | 3,3VDC | 1000mA | 110947 |
E6DW48R5 | 36-72VDC | 5VDC | 1000mA | 110960 |
E6DW48R12 | 36-72VDC | 12VDC | 470mA | 110961 |
E6DW48R15 | 36-72VDC | 15VDC | 400mA | 110962 |
E6DW48R12-12 | 36-72VDC | 12VDC / -12VDC | 230mA / -230mA | 110963 |
E6DW48R15-15 | 36-72VDC | 15VDC / -15VDC | 190mA / -190mA | 110964 |
