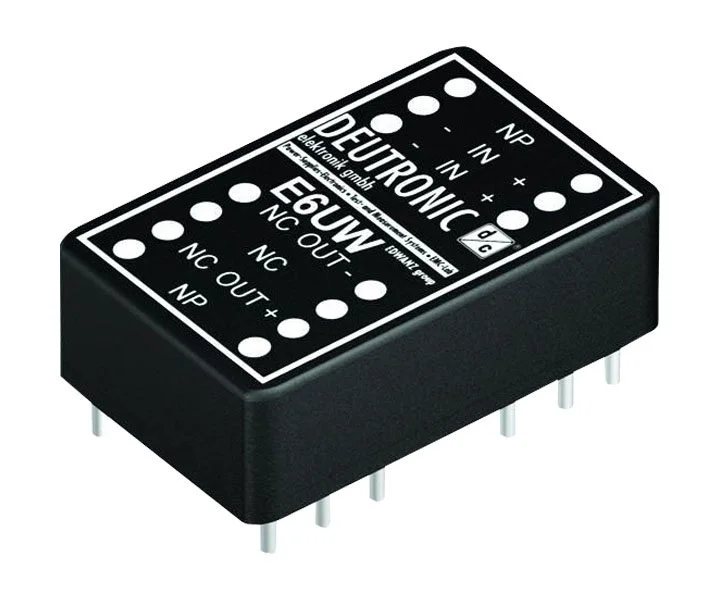

E6UW
输入/输出隔离最低1500VDC
短路保护
双版本： 最小负载约为 10%
可选项 H 3kV
宽范围输入 4:1
24 针引脚 DIL
● 产品型号:
型号 | 输入电压 | 输出电压 | 输出电流 | 产品编码 |
E6UW24R3,3 | 9-36VDC | 3,3VDC | 1000mA | 111185 |
E6UW24R5 | 9-36VDC | 5VDC | 1000mA | 111172 |
E6UW24R12 | 9-36VDC | 12VDC | 470mA | 111173 |
E6UW24R15 | 9-36VDC | 15VDC | 400mA | 111174 |
E6UW24R5-5 | 9-36VDC | 5VDC / -5VDC | 500mA / -500mA | 111177 |
E6UW24R12-12 | 9-36VDC | 12VDC / -12VDC | 230mA / -230mA | 111175 |
E6UW24R15-15 | 9-36VDC | 15VDC / -15VDC | 190mA / -190mA | 111176 |
E6UW48R3,3 | 18-72VDC | 3,3VDC | 1000mA | 111184 |
E6UW48R5 | 18-72VDC | 5VDC | 1000mA | 111178 |
E6UW48R12 | 18-72VDC | 12VDC | 470mA | 111179 |
E6UW48R15 | 18-72VDC | 15VDC | 400mA | 111180 |
E6UW48R5-5 | 18-72VDC | 5VDC / -5VDC | 500mA / -500mA | 111183 |
E6UW48R12-12 | 18-72VDC | 12VDC / -12VDC | 230mA / -230mA | 111181 |
E6UW48R15-15 | 18-72VDC | 15VDC / -15VDC | 190mA / -190mA | 111182 |
