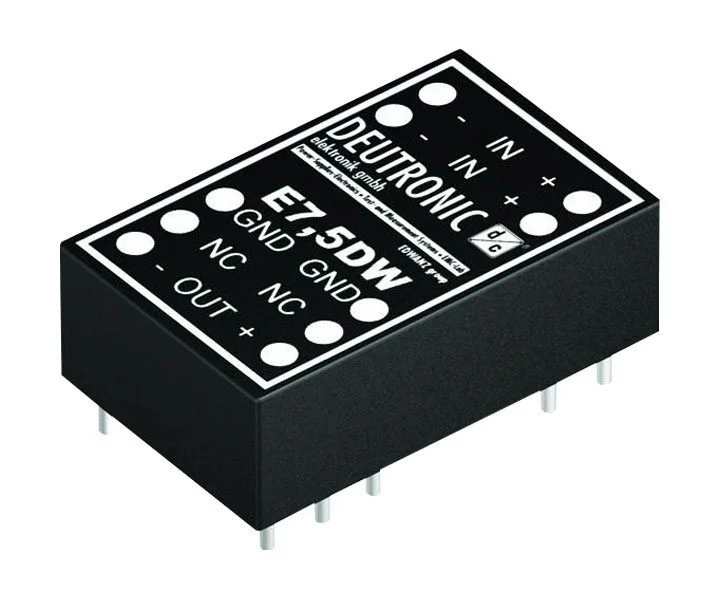

E7,5DW
PI 输入滤波器
效率高达 83%
输入/输出隔离最低1500VDC
短路保护
24 针引脚 DIP 封装
宽范围输入 2:1
双版本： 最小负载约为 10%
● 产品类型:
型号 | 输入电压 | 输出电压 | 输出电流 | 产品编码 |
E7,5DW12R5 | 9-18VDC | 5VDC | 1500mA | 110969 |
E7,5DW12R12 | 9-18VDC | 12VDC | 625mA | 110970 |
E7,5DW12R15 | 9-18VDC | 15VDC | 500mA | 110971 |
E7,5DW12R5-5 | 9-18VDC | 5VDC / -5VDC | 750mA / -750mA | 110972 |
E7,5DW12R12-12 | 9-18VDC | 12VDC / -12VDC | 310mA / -310mA | 110973 |
E7,5DW12R15-15 | 9-18VDC | 15VDC / -15VDC | 250mA / -250mA | 110974 |
E7,5DW24R5 | 18-36VDC | 5VDC | 1500mA | 110975 |
E7,5DW24R12 | 18-36VDC | 12VDC | 625mA | 110976 |
E7,5DW24R15 | 18-36VDC | 15VDC | 500mA | 110977 |
E7,5DW24R5-5 | 18-36VDC | 5VDC / -5VDC | 750mA / -750mA | 110978 |
E7,5DW24R12-12 | 18-36VDC | 12VDC / -12VDC | 310mA / -310mA | 110979 |
E7,5DW24R15-15 | 18-36VDC | 15VDC / -15VDC | 250mA / -250mA | 110980 |
E7,5DW48R5 | 36-72VDC | 5VDC | 1500mA | 110981 |
E7,5DW48R12 | 36-72VDC | 12VDC | 625mA | 110982 |
E7,5DW48R15 | 36-72VDC | 15VDC | 500mA | 110983 |
E7,5DW48R5-5 | 36-72VDC | 5VDC / -5VDC | 750mA / -750mA | 110984 |
E7,5DW48R12-12 | 36-72VDC | 12VDC / -12VDC | 310mA / -310mA | 110985 |
E7,5DW48R15-15 | 36-72VDC | 15VDC / -15VDC | 250mA / -250mA | 110986 |
