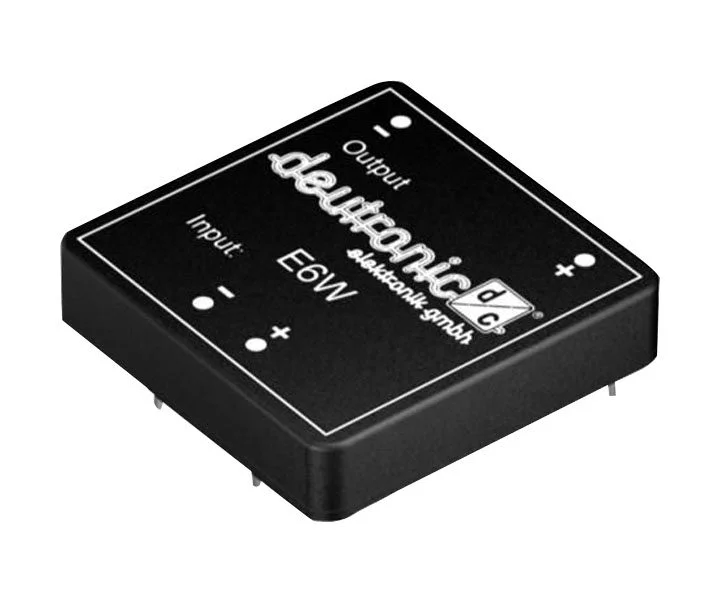

E6W
2″x2″ 外壳
PI 输入滤波器
效率高达 82%
工作温度范围 -25°C~+71°C
输入/输出隔离 最低500VDC
●产品型号:
型号 | 输入电压 | 输出电压 | 输出电流 | 产品编码 |
E6W5R5C | 4,65-5,5VDC | 5VDC | 1000mA | 110900C |
E6W5R12C | 4,65-5,5VDC | 12VDC | 470mA | 110901C |
E6W5R15C | 4,65-5,5VDC | 15VDC | 400mA | 110902C |
E6W5R12-12C | 4,65-5,5VDC | 12VDC / -12VDC | 230mA / -230mA | 110903C |
E6W5R15-15C | 4,65-5,5VDC | 15VDC / -15VDC | 190mA / -190mA | 110904C |
E6W24R5C | 18-36VDC | 5VDC | 1000mA | 111005C |
E6W24R15C | 18-36VDC | 15VDC | 400mA | 111007C |
