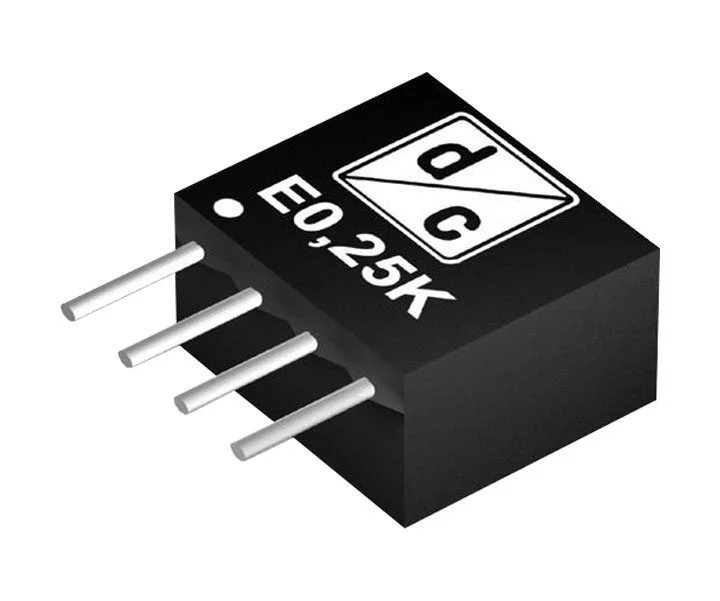

E0,25K
Operating temp. up to +70°C
Option/1: -25°C up to +85°C
Option/2: -45°C up to +85°C
Isolation 1000VDC
High efficiency
4-pin SIL package
UL 94 V-0 Package Material
● Typelist:
| Type | Input Voltage | Output Voltage | Output Current | Cat. No |
|---|---|---|---|---|
| E0,25K5A5 | 5VDC | 5VDC | 50mA | 110570 |
| E0,25K5A9 | 5VDC | 9VDC | 27mA | 110571 |
| E0,25K5A12 | 5VDC | 12VDC | 21mA | 110572 |
| E0,25K5A15 | 5VDC | 15VDC | 17mA | 110573 |
| E0,25K12A5 | 12VDC | 5VDC | 50mA | 110574 |
| E0,25K12A9 | 12VDC | 9VDC | 27mA | 110575 |
| E0,25K12A12 | 12VDC | 12VDC | 21mA | 110576 |
| E0,25K12A15 | 12VDC | 14VDC | 17mA | 110577 |
| E0,25K24A5 | 24VDC | 5VDC | 50mA | 110578 |
| E0,25K24A9 | 24VDC | 9VDC | 27mA | 110579 |
| E0,25K24A12 | 24VDC | 12VDC | 21mA | 110580 |
| E0,25K24A15 | 24VDC | 15VDC | 17mA | 110581 |
