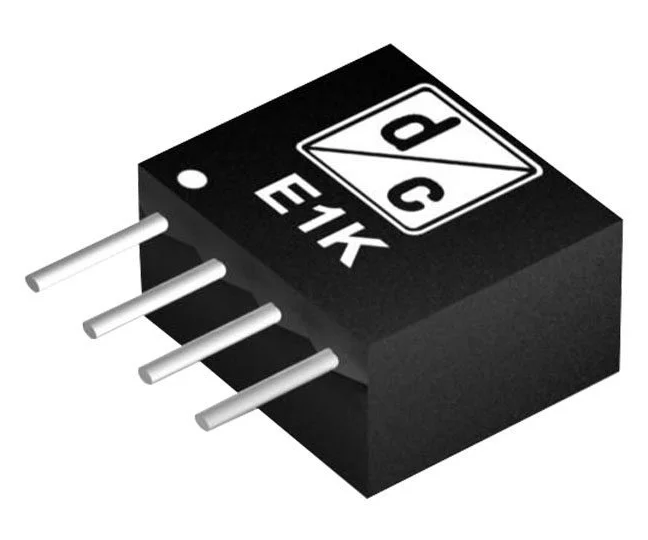

E1K
Operating temp. up to +70°C
Option/1: -25°C up to +85°C
Option/2: -45°C up to +85°C
Isolation 1000VDC
High efficiency
4-pin SIL package
UL 94 V-0 Package Material
● Typelist:
| Type | Input Voltage | Output Voltage | Output Current | Cat. No |
|---|---|---|---|---|
| E1K5A5 | 5VDC | 5VDC | 200mA | 110521 |
| E1K5A9 | 5VDC | 9VDC | 111mA | 110522 |
| E1K5A12 | 5VDC | 12VDC | 84mA | 110523 |
| E1K5A15 | 5VDC | 15VDC | 68mA | 110524 |
| E1K12A5 | 12VDC | 5VDC | 200mA | 110525 |
| E1K12A9 | 12VDC | 9VDC | 111mA | 110526 |
| E1K12A12 | 12VDC | 12VDC | 84mA | 110527 |
| E1K12A15 | 12VDC | 14VDC | 68mA | 110528 |
| E1K24A5 | 24VDC | 5VDC | 200mA | 110529 |
| E1K24A9 | 24VDC | 9VDC | 111mA | 110530 |
| E1K24A12 | 24VDC | 12VDC | 84mA | 110531 |
| E1K24A15 | 24VDC | 15VDC | 68mA | 110532 |
